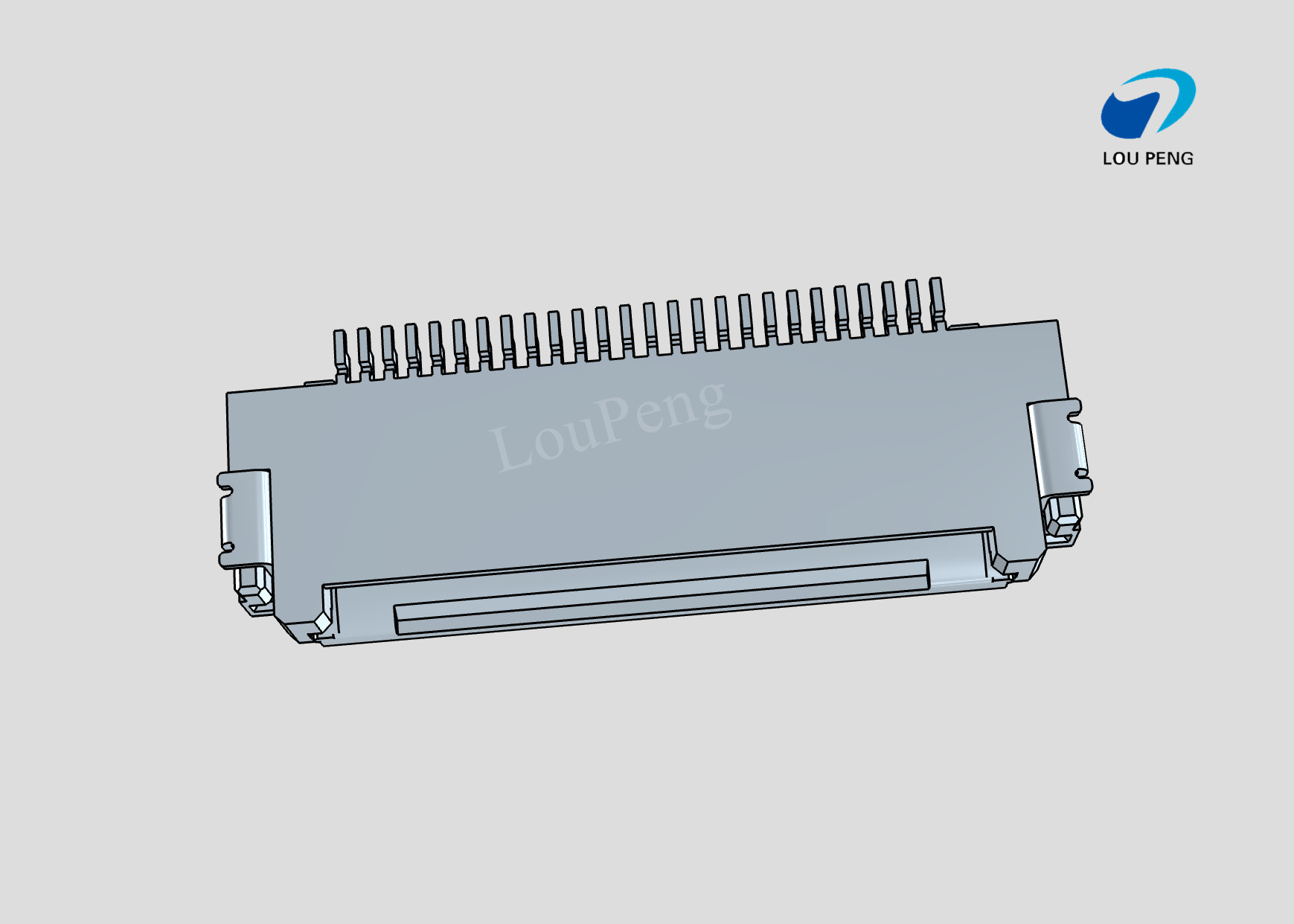

FPC Connectors, 26pin, 0.5mm pitch, ZIF, SMT, flex ribbon cable connector,flat flex cable connector

Product Description

Connector product type: Connector component
PCB connector component type: PCB mounting parent
Connector system: flexible cable to plate
Insertion force type: Zero insertion force (ZIF)
FPC actuator Type: Cap (Plunger type)
Sealable: no
Connector and terminal End connection: Flexible Printed Circuit (FPC)

Number of lines: 1
Compatible with cable types: FFC, FPC
Number of Positions: 26
PCB mounting direction: Right Angle

Operating voltage (VAC): 250

Terminal base material: phosphor bronze
PCB terminal end area electroplating material: gold
Terminal shape and construction: single beam
Thickness of electroplating material in terminal joint area:.025 m [.984 in]
Terminal type: socket
Thickness of electroplating material at PCB terminal connection area:.025 m [.984 in]
Terminal joint position: Bottom
Electroplating material for terminal contact: gold
Terminal rated current (Max.) (A): 1
Terminal layout: SMT

PCB end connection method: surface mount

Joint alignment: With
PCB mounting alignment: without
PCB mounting and fixing: with
Connector installation type: Board installation

Shell material: LCP (Liquid crystal polymer)
Centerline (spacing) :.5 mm [.0197 in]

Operating temperature range (°C): -40 -- 85, -40 -- 85
Operating temperature range (°F): -40 -- 185, -40 -- 185
