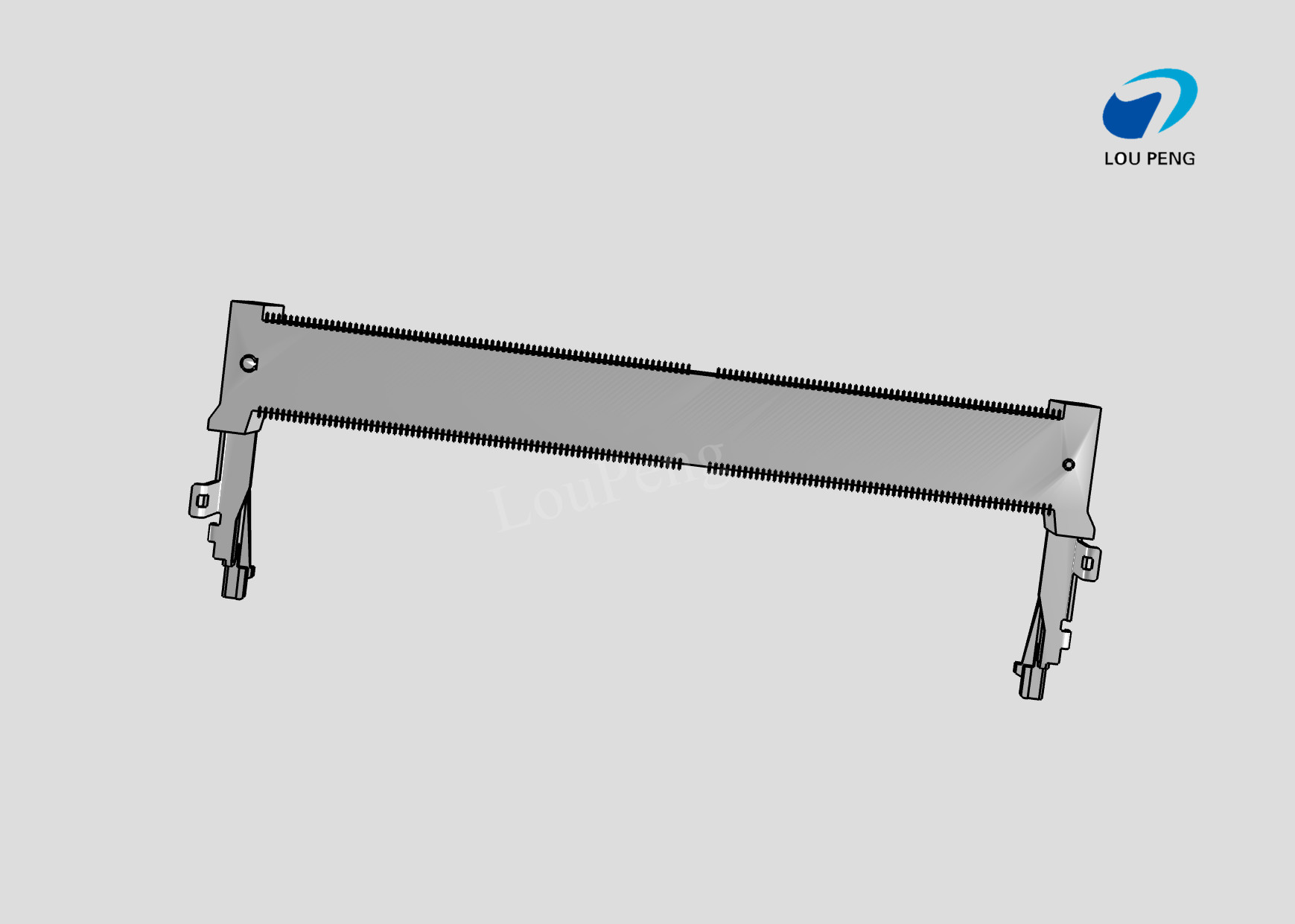

    DDR2 SODIMM4 260PIN 9.2H STD

    Ask Lasest Price
    Brand Name : LP
    Model Number : LP-DR004
    Certification : ISO-9001:2000
    Price : 0.0001
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 100000pcs
    Delivery Time : 7~10 days
    • Product Details
    • Company Profile

    DDR2 SODIMM4 260PIN 9.2H STD

    Product Description

    Module direction: Right Angle
    Number of Positions: 260
    The number of rows: 2
    Keying: Standard
    Number of keys: 1
    Center key: left offset

    DRAM voltage (V): 1.2

    Catapult type: Locked
    Connector profile: Height
    Module key type: left offset
    Fixed column position: both ends
    Bolt material: high temperature thermoplastic
    Catapult position: two ends
    Fixed column material: stainless steel

    Terminal base material: copper alloy
    PCB terminal end area electroplating material: gold plating
    Terminal base plate material: Nickel
    Electroplating material for terminal contact: gold plating
    Terminal rated current (Max.) (A):.5
    Socket type: memory card
    Type of socket: SO DIMM

    Center line (spacing) (mm):.5, 7.3
    Centerline (spacing) (in):.0197
    Shell material: high temperature thermoplastic
    Shell color: black

    Operating temperature: -55 -- 85 °C [-67 -- 185 °F]

    UL flammability rating: UL 94V-0
