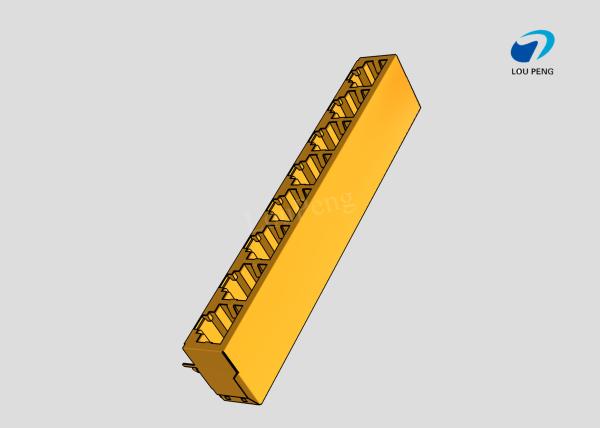

RJ45 8-port jack Cat.5 THT angled

    Buy cheap RJ45 8-port jack Cat.5 THT angled from wholesalers

    Buy cheap RJ45 8-port jack Cat.5 THT angled from wholesalers
    • Buy cheap RJ45 8-port jack Cat.5 THT angled from wholesalers
    • Buy cheap RJ45 8-port jack Cat.5 THT angled from wholesalers
    • Buy cheap RJ45 8-port jack Cat.5 THT angled from wholesalers
    • Buy cheap RJ45 8-port jack Cat.5 THT angled from wholesalers
    • Buy cheap RJ45 8-port jack Cat.5 THT angled from wholesalers

    RJ45 8-port jack Cat.5 THT angled

    Ask Lasest Price
    Brand Name : LP
    Model Number : LP-RJ023
    Certification : ISO-9001:2000
    Price : 0.0003
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 100000pcs
    Delivery Time : 7~10 days
    • Product Details
    • Company Profile

    RJ45 8-port jack Cat.5 THT angled

    Product Description
    Shielding material: Copper zinc alloy
    Shielding electroplating material: tin copper plating
    Connector profile: Standard
    Position of PCB grounding plate: -3.43mm [-.135in]
    Insulator Resistance: 1000 Megohms min
    Dielectric Withstanding: AC 750V
    Operating temperature range (°C): -40 -- 85, -40 -- 85
    Operating temperature range (°F): -40 -- 185, -40 -- 185
    PCB terminal end area electroplating material: Tin
    Insulator material: LCP(UL94V-0)
    Terminal base plate material: Nickel
    Terminal rated current (Max.) (A): 1.5
    Electroplating material for terminal contact: gold
    Terminal base material: phosphor bronze
    Thickness of electroplating material in terminal joint area: 1.27 m [50 in]
    RJ45 8-port jack Cat.5 THT angled
