    SMP Connector, 5G Connector,ZSMP Connector

    Ask Lasest Price
    Brand Name : LP
    Model Number : SMP-002
    Certification : ISO-9001:2008
    Price : USD0.01/PCS
    Payment Terms : T/T, , Western Union, L/C
    Supply Ability : 100000PCS/weeks
    Delivery Time : 10~15 Days
    • Product Details
    • Company Profile

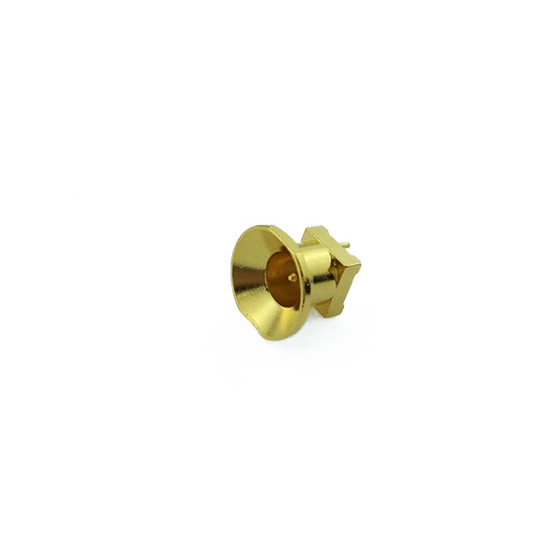

    SMP Connector, 5G Connector,ZSMP Connector

    ZSMP sliding end straight,5G connector, meet miniaturization + super compact + high reliability + low intermodulation + fast connection + convenient assembly + full spectrum coverage, power more high-speed, higher capacity, larger broadband 5G future network.


    电气特性
    阻抗50Ω (Typical)
    频率范围(ohm)DC – 6 GHz
    绝缘电阻(%)5 000 MΩ
    额定电压335 VRMS
    内接触电阻<=6mω
    3阶互调@1800 MhzBetter -120 dbc@2x20w
    驻波*1.3 @ DC – 3 GHz 1.35@3-5Ghz 1.4@5-6GG
    插入损失*0.15SQ(F(Ghz)),6GHz,0.37dB max
    功率200W Max. @ 2.7 GHz at 85℃
    高压1000 Vrms
    外接触电阻<=3 mΩ
    隔离-60dB

    机械特性
    耐久性100 Min.
    对接力(mm)<14N (Smooth bore)
    内导体保持力>= 7N
    偏移+/-1mm
    非接触拉力< 7 N ( smooth bore)
    产品重量TBD

    环境特征
    温度范围-55℃ to +165℃
    RoHS & REACH符合RoHS
    盐雾GB/T11313-2013 9.4.6 48 hours
